To install a circuit breaker, you must shut off the main power, snap the new breaker onto the electrical bus bar, and securely tighten the circuit wires into the designated terminals. Opening up your main electrical panel can feel a bit scary at first. Most homeowners worry about getting a shock or messing up the house’s wiring.
However, learning how to install a circuit breaker is a valuable skill that helps you manage your home’s power needs safely. Whether you are installing a new circuit breaker for a home office or installing the breaker for a new appliance, this step-by-step guide will help you navigate your breaker box with confidence.

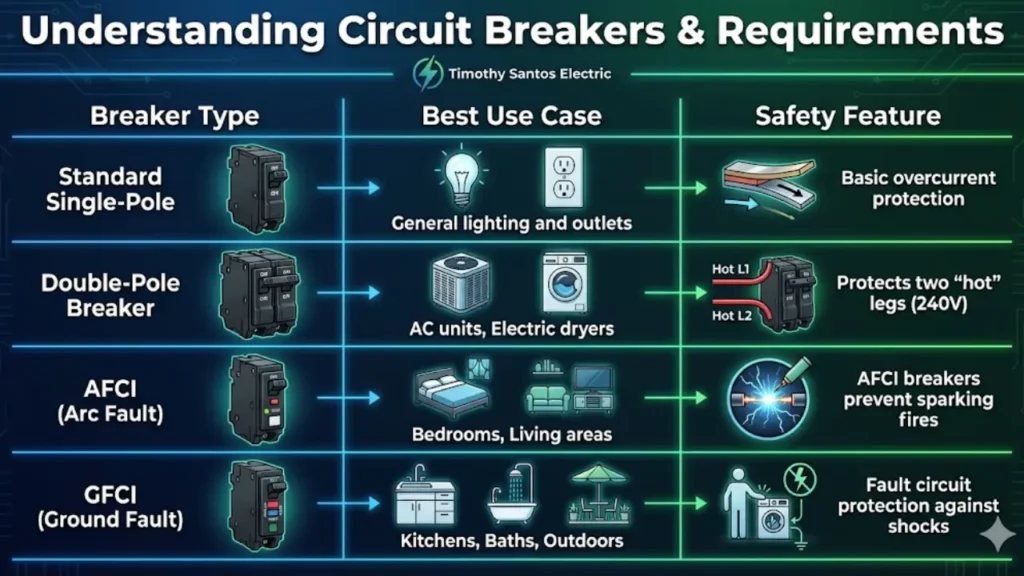

Understanding Circuit Breakers & 2026 Requirements
To pick the right parts, you must match the breaker brand to your specific panel box to ensure the metal tabs lock together perfectly. Before you head to the hardware store, take a photo of your circuit breaker panel label.
In 2026, the electrical code is very strict about using a breaker that is compatible with your specific breaker panel. Using an improper circuit breaker is a risk that can lead to overheating or a fire. Today’s homes in Tewksbury, MA, use more power than ever. When adding a new circuit breaker, you need to choose the correct type of circuit breaker for your specific residential electrical setup.
| Breaker Type | Best Use Case | Safety Feature |
| Standard Single-Pole | General lighting and outlets | Basic overcurrent protection |
| Double-Pole Breaker | AC units, Electric dryers | Protects two “hot” legs (240V) |
| AFCI (Arc Fault) | Bedrooms, Living areas | AFCI breakers prevent sparking fires |
| GFCI (Ground Fault) | Kitchens, Baths, Outdoors | Fault circuit protection against shocks |
If you are adding a new circuit in Middlesex County, the Tewksbury Building Department usually requires a permit. This ensures your circuit breaker installation project meets all electrical safety standards.
Essential Tools & Safety Gear
You need basic insulated hand tools and a voltage tester to prove the power to the panel is completely disconnected before you touch any internal parts. Working with electrical systems requires the right gear; you should never work on a wet surface or with damp hands. To install a circuit breaker safely, gather these tools:
- No. 2 square drive insulated screwdriver
- Non-contact voltage tester (Safety Sniffer)
- Digital multimeter
- Bright headlamp
- Safety goggles and insulated gloves
If you remove the panel cover and see a “rat’s nest” of tangled wires, you might need to lean on a professional electrician like Timothy Santos Electric to clean up the circuit panel before you add a breaker.
The Cost Breakdown: DIY vs Pro in Tewksbury
A DIY install costs between $20 and $100 for parts, while hiring a pro in the Tewksbury area usually runs between $150 and $300 for labor. While adding a circuit yourself saves money, the type of breaker you choose changes the price. A 15-amp breaker is cheap, but AFCI or GFCI units are more expensive.
| Installation Method | Estimated Cost | Pros/Cons |
| DIY (Self-Install) | $20 – $110 | Cheapest, but carries electrical hazards |
| Professional Electrician | $150 – $350 | Guaranteed safety and electrical work warranty |
If you see charred wires or your breaker keeps tripping, stop immediately. If your circuit breaker box is an old “Federal Pacific” model, call Timothy Santos Electric for a full electrical system audit.

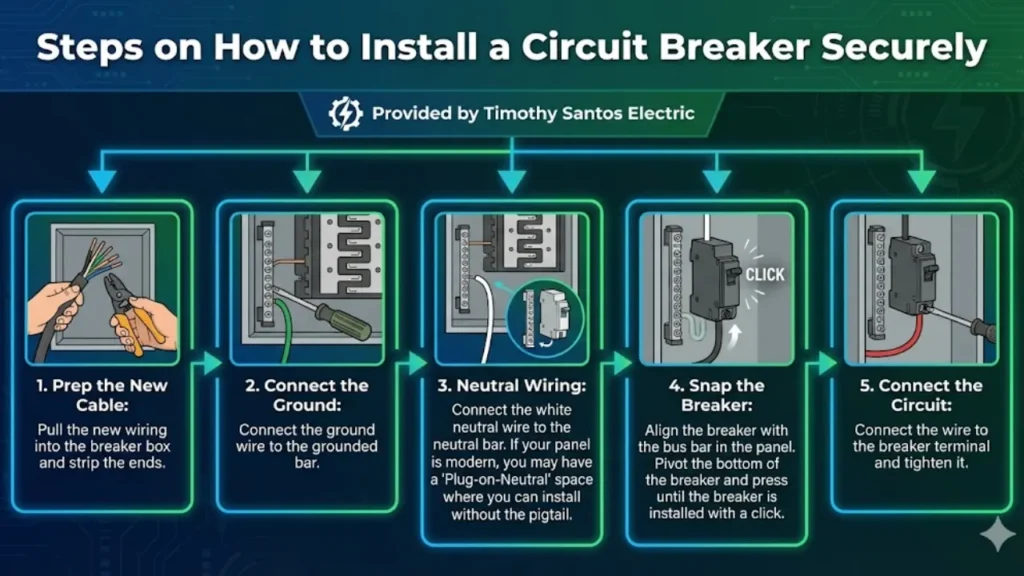

Steps on How to Install a Circuit Breaker Securely
Installing the unit involves hooking the breaker onto the mounting rail and snapping it firmly onto the bus bar in the panel until it clicks. To install the circuit breaker, first remove the panel cover. Always turn off the main breaker and test the bus bar in the panel with your multimeter to ensure there is no power to the panel.
- Prep the New Cable: Pull the new wiring into the breaker box and strip the ends.
- Connect the Ground: Connect the ground wire to the grounded bar.
- Neutral Wiring: Connect the white neutral wire to the neutral bar. If your panel is modern, you may have a “Plug-on-Neutral” space where you can install without the pigtail.
- Snap the Breaker: Align the breaker with the bus bar in the panel. Pivot the bottom of the breaker and press until the breaker is installed with a click.
- Connect the Circuit: Connect the wire to the breaker terminal and tighten it.
Testing & Troubleshooting
You test the new circuit by turning on the main circuit breaker first, then flipping the new breaker to the “On” position. Once you turn on the main breaker, flip your new breaker. If the breaker trips, you may have a short circuit.
Circuit breakers protect your home by cutting power during a fault. Use the test button on the AFCI units to ensure the circuit interrupter is active. Finally, label the circuit on the circuit directory inside the panel box so everyone knows which individual circuit breakers control which rooms.
FAQs
Can I put a 20-amp breaker on 14-gauge wire?
Absolutely not. This is a major fire hazard. 14-gauge wire is only rated for a 15-amp circuit, and a 20-amp breaker will allow the wire to overheat and melt before it ever trips the circuit.
How do I access the breaker slots?
To access the breaker slots, you must remove the panel cover and then use pliers to twist and break off the small metal rectangular knockouts on the panel cover that align with your new breaker.
What should I do if the circuit breaker is still loose?
Make sure the circuit breaker is snapped fully onto the bus bar in the panel. If it still wiggles, you may have an improper circuit breaker that is not compatible with your panel, which can cause dangerous electrical arcing.
How do I install circuit breakers for heavy appliances?
For large appliances like dryers or ACs, you need to install a new circuit breaker that is a double-pole breaker. This occupies two slots in the breaker box to provide the 240 volts required for high-energy residential electrical loads.
Why did my new breaker trip instantly?
If the breaker keeps tripping, it usually senses a short circuit or a ground fault. This happens if the neutral wire is touching the ground wire or if the wire to the breaker was damaged during the circuit breaker installation project.
Ready to Power Up Your Home Safely
When you learn how to install a new circuit, you are taking a big step in maintaining your home’s electrical system. Whether you install a new circuit breaker or add a circuit breaker for a small project, always follow the step-by-step safety rules. Make sure the circuit breaker is the correct type of circuit breaker for your specific circuit breaker for your panel.
If you are unsure about how to install a circuit breaker safely, reach out to the pros. Timothy Santos Electric can handle your circuit breaker installation to ensure everything is connected to the circuit perfectly.
